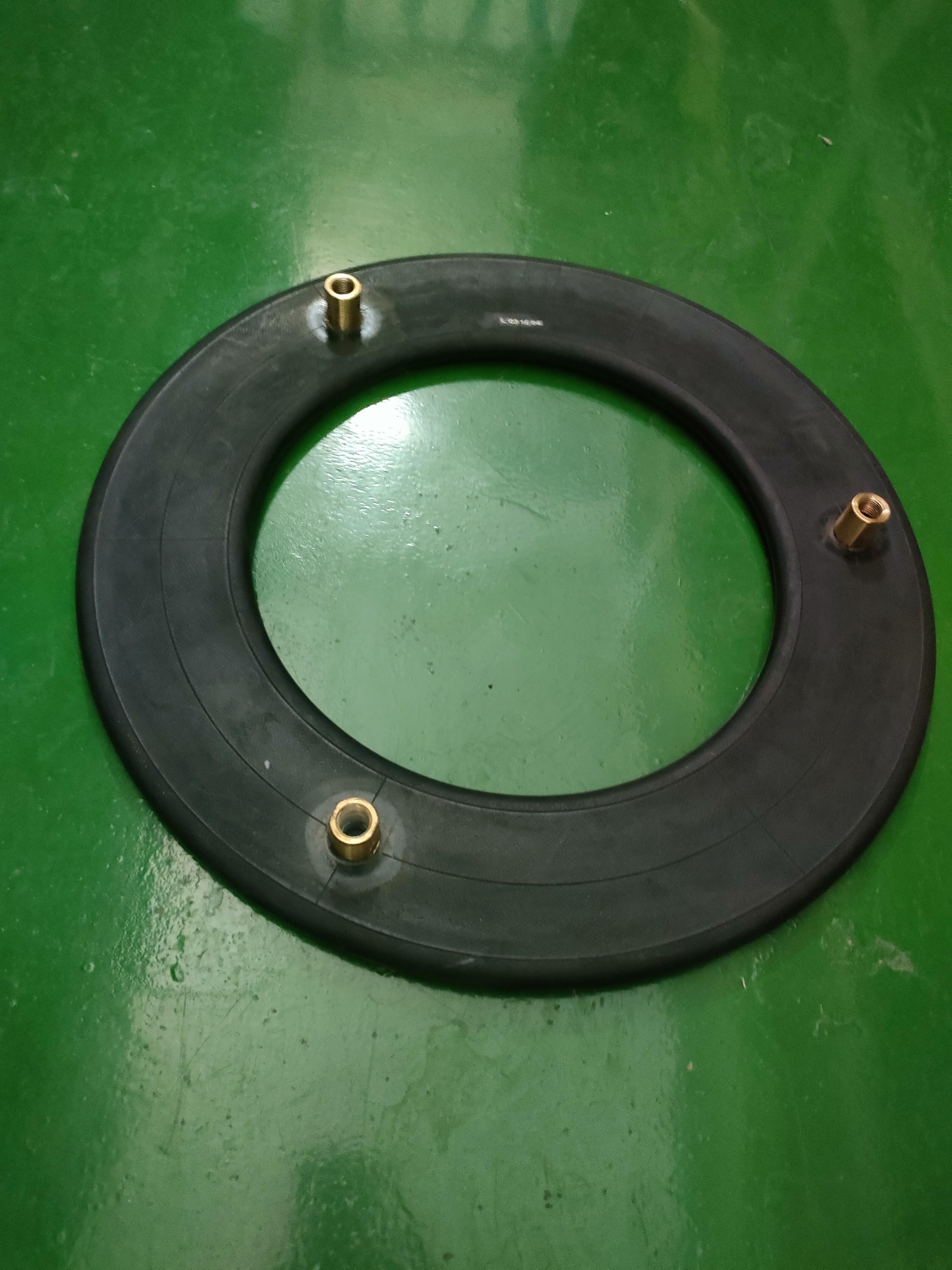

氣胎
離合器用氣胎，型號齊全，歡迎來電咨詢。
| 氣囊型號 Size |
長度L mm Length |
斷面寬B mm |
厚度H mm Thickness |
氣嘴數(shù)量Nozzle number |
氣嘴內(nèi)螺紋mm Nozzle internal thread |
氣嘴高度mm Nozzle height bыcota |
| AVB500x200 | 1000 | 190 | 26 | 1 | G1/2" | 23 |
| AVB500x250 | 1031 | 246 | 26 | 2 | M20x1.5 | 25 |
| AVB600x250 | 1185 | 246 | 26 | 2 | G1/2" | 23 |
| AVB700x250 | 1365 | 246 | 26 | 2 | G1/2" | 23 |
| AVB800x250 | 1522 | 246 | 26 | 2 | G1/2" | 23 |
| AVB900x250 | 1700 | 246 | 26 | 2 | G1/2" | 23 |
| AVB500x200(長) | 2030 | 190 | 26 | 2 | G1/2" | 23 |
| AVB700x250(長) | 2720 | 246 | 30 | 2 | G1/2" | 23 |
| AVB1120x300 | 1985 | 290 | 26 | 2 | G1/2" | 27 |
| AVB1250x300 | 2186 | 285 | 26 | 2 | G1/2" | 27 |
| AVB1070x200 | 1990 | 222 | 38 | 2 | M33x1.5 | 27 |
| AVB1170x250 | 2142 | 264 | 35 | 2 | M33x1.5 | 27 |
| 隔膜DY 700x135 | Ф870xФ810x246 mm | |||||
| DiaphragmDY 700x135 | ||||||
| DY 700x135 | ||||||
| 隔膜945 | Ф945xФ496x32 mm | |||||
| Diaphragm945 | ||||||
| Diaphragm945 | ||||||
| 隔膜772 | Ф772xФ300x20mm | |||||
| Diaphragm772 | ||||||
| Diaphragm772 | ||||||
| 隔膜630 | Ф630xФ245x22 mm | |||||
| Diaphragm630 | ||||||
| Diaphragm630 | ||||||
